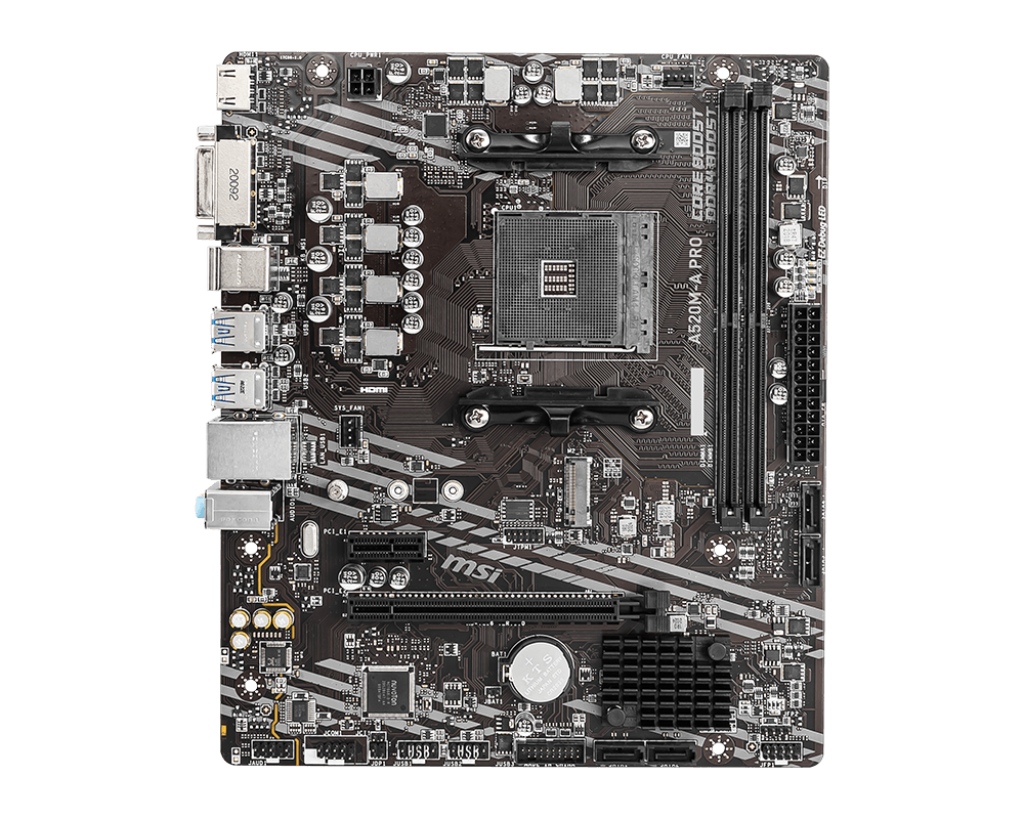

PRO A520M-A DDR4

CPU

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

See supported processors

Chipset

AMD A520 Chipset

Memory

• 2x DDR4 memory slots, support up to 64GB ¹
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
    • 1DPC 1R max speed 4600 MHz
    • 1DPC 2R max speed 3866 MHz
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

Expansion Slot

• 1x PCIe 3.0 x16 slot (from AMD processor)¹
  • Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors
  • Supports x8 speed with Ryzen™ 3000G processors
  • Supports x4 speed with AMD^® Athlon™ with Radeon Graphics processors
• 1x PCIe 3.0 x1 slot

1. The supported specification depends on installed processor.
